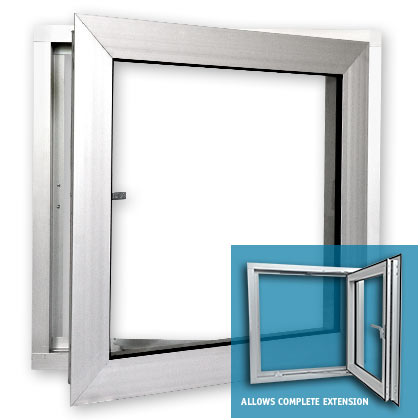

A project-out, casement-style window, this model comes with egress hardware, including a four-bar egress hinge and a two-point egress lock for windows above 36˝. It is used exclusively as an emergency exit, and is built to easily allow complete extension of the window when opened. Left and right hand options are available.

3700 Series Windows
EW3700 Series
Application
Egress Casement
Frame Joints
Screw Spline
Window Joints
Mitered-clip, Epoxy & Stake
Glass Thickness
1/4" & 1"
Face Width
2-3/8"
Frame Depth
2"
Hardware
Optional Hardware
>35" tall: clear or black 2-pt locking with egress sash pull handle
Air Infiltration
<.01CFM/Ft2
Static Water
12 PSF
AAMA/WDMA/CSA 101 I.5.2/A440-08,NAFS Testing
Class CW-PG-60
Life Cycle Tested
2500 Cycles
U-Factor
.46

EW Egress
Details:
Installation Instructions:
Test Reports:
Specs:

PDF File
E3700
E3701
E3702
E3703

PDF File
PDF File
Text File
