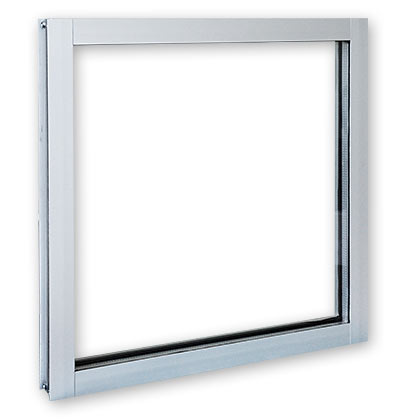

This is a fixed window, meaning it does not open. Fixed windows are usually used as stationary windows next to, above or below a window that does open, thus extending the surface area of glass.

3700 Series Windows
FW3700 Series
Application
Fixed Window
Frame Joints
Screw-spline
Window Joints
Mitered-clip, Epoxy & Stake
Glass Thickness
1/4" & 1"
Face Width
1-1/4"
Frame Depth
2"
Air Infiltration
0.10CFM/Ft2 @ 6.24psf
Static Water
12 PSF
C-AW-60
Life Cycle Tested
2500 Cycles

FW Fixed
CAD File (DWG):
Details:
Installation Instructions:
Test Reports:
Specs:

ZIP File

E3702
E3703
E3711
NA
PDF File
NA
