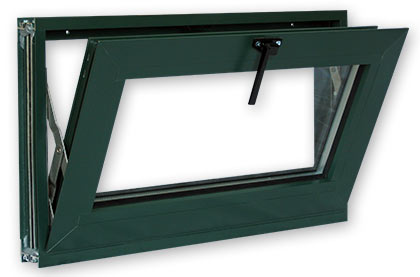

An in-swing, hopper-style window, this is the only model that opens in towards the building interior. The HW 3700 is available in manual operation only.

3700 Series Windows HW3700
Application
Hopper Frame
Frame Joints
Screw-spline
Window Joints
Mitered-clip, Epoxy & Stake
Glass Thickness
1/4" & 1"
Face Width
2-3/8"
Frame Depth
2"
Hardware
4-bar hinges, Cam lock
Air Infiltration
0.10CFM/Ft2 @ 6.24psf
Static Water
12 PSF
ANSI/AAMA Testing
AP-AW-60
Life Cycle Tested
2500 Cycles
Screen

HW Hopper
CAD File (DWG):
Details:
Installation Instructions:
Test Reports:
Specs:

ZIP File

E3700
E3702
E3703
E3713
E3720
PDF File
PDF File
NA
